MMA Welding Machine

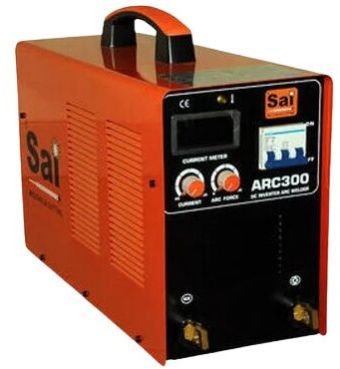

Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of ARC 200 Welding Machines, ARC 250 Welding Machines, ARC 300 Welding Machines, ARC 400 Welding Machines and ARC 630 Welding Machines from Chennai.
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Input Power Voltage | AC 240V (1 phase) ±10% |
| Rated Input Power Capacity(KVA) | 7 |
| Input Power Freuency(Hz) | 50/60 |
| No Load Voltage(V) | 62 |
| Output Current Ranges(A) | 20 -200 |
| Rated Output Voltage(V) | 27 |
| Duty Cycle(%) | 60 |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Weight(KGs) | 8 |
| Overall Dimension (mm) | 440 x218 x355 |
| Protection class of case | IP23 |
| Driver Adjustment Range | 0.60 |
| Diameter of Electrode (mm) | 1.6 -3.15 |
Features
\\n- \\n
- Power Saving up to 30 - 70 % \\n
- Power Factor (PF) more than 0.9 \\n
- Light in weight & compact in size \\n
- High Quality & Spatter less in welding \\n
- Good ARC start and arc force \\n
- Protection against low voltage, high voltage, single phase & surge voltage \\n
- Suitable to weld all kind of Electronics \\n
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Country of Origin | India |
| Input Power Voltage | AC 400V (3 phase) ±15% |
| Rated Input Power Capacity(KVA) | 9.4 |
| Input Power Freuency(Hz) | 50/60 |
| No Load Voltage(V) | 62 |
| Output Current Ranges(A) | 20 -250 |
| Rated Output Voltage(V) | 30 |
| Duty Cycle(%) | 60 |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Weight(KGs) | 8 |
| Overall Dimension (mm) | 945 x218 x355 |
| Protection class of case | IP23 |
| Driver Adjustment Range | 0.60 |
| Diameter of Electrode (mm) | 1.6 -4 |
Features
\\n- \\n
- Power Saving up to 30 - 70 % \\n
- Power Factor (PF) more than 0.9 \\n
- Light in weight & compact in size \\n
- High Quality & Spatter less in welding \\n
- Good ARC start and arc force \\n
- Protection against low voltage, high voltage, single phase & surge voltage \\n
- Suitable to weld all kind of Electronics \\n
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Country of Origin | India |
| Input Power Voltage | AC 440V (3 phase) ±15% |
| Rated Input Power Capacity(KVA) | 12 |
| Input Power Freuency(Hz) | 50/60 |
| No Load Voltage(V) | 69 |
| Output Current Ranges(A) | 20 -300 |
| Rated Output Voltage(V) | 33 |
| Duty Cycle(%) | 60 |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Weight(KGs) | 18 |
| Overall Dimension (mm) | 580 x320 x495 |
| Protection class of case | IP23 |
| Driver Adjustment Range | 0.100 |
| Diameter of Electrode (mm) | 2.4 -4 |
Features
\\n- \\n
- Power Saving up to 30 - 70 % \\n
- Power Factor (PF) more than 0.9 \\n
- Light in weight & compact in size \\n
- High Quality & Spatter less in welding \\n
- Good ARC start and arc force \\n
- Protection against low voltage, high voltage, single phase & surge voltage \\n
- Suitable to weld all kind of Electronics \\n
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Country of Origin | India |
| Input Power Voltage | AC 440V (3 phase) ±15% |
| Rated Input Power Capacity(KVA) | 10 |
| Input Power Freuency(Hz) | 50/60 |
| No Load Voltage(V) | 69 |
| Output Current Ranges(A) | 20-400 |
| Rated Output Voltage(V) | 36 |
| Duty Cycle(%) | 60 |
| Efficiency (%) | 85 |
| Power factor | 0.93 |
| Weight(KGs) | 28 .5 |
| Overall Dimension (mm) | 580 x320 x495 |
| Protection class of case | IP23 |
| Driver Adjustment Range | 0.130 |
| Diameter of Electrode (mm) | 2.4 -5 |
Features
\\n- \\n
- Power Saving up to 30 - 70 % \\n
- Power Factor (PF) more than 0.9 \\n
- Light in weight & compact in size \\n
- High Quality & Spatter less in welding \\n
- Good ARC start and arc force \\n
- Protection against low voltage, high voltage, single phase & surge voltage \\n
- Suitable to weld all kind of Electronics \\n
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Country of Origin | India |
| Input Power Voltage | AC 440V (3 phase) ±15% |
| Rated Input Power Capacity(KVA) | 35 |
| Input Power Freuency(Hz) | 50/60 |
| No Load Voltage(V) | 72 |
| Output Current Ranges(A) | 20 -630 |
| Rated Output Voltage(V) | 44 |
| Duty Cycle(%) | 60 |
| Efficiency (%) | 85 |
| Power factor | 0.95 |
| Weight(KGs) | 55 |
| Overall Dimension (mm) | 670 x395 x633 |
| Protection class of case | IP23 |
| Driver Adjustment Range | 0.150 |
| Diameter of Electrode (mm) | 2.4 -8 grouping |
Features
\\n- \\n
- Power Saving up to 30 - 70 % \\n
- Power Factor (PF) more than 0.9 \\n
- Light in weight & compact in size \\n
- High Quality & Spatter less in welding \\n
- Good ARC start and arc force \\n
- Protection against low voltage, high voltage, single phase & surge voltage \\n
- Suitable to weld all kind of Electronics \\n
