OTC Welding Machine
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Otc Daihen CPVE-400 MIG Welding Machine, Otc Daihen CPVE-500 MIG Welding Machine and Wire Feeder from Chennai.
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Model | CPVE-400 |
| Phase | 3Ph |
| Rated Input Voltage | 415V + 10 % |
| Rated Input Power | Rated Input Power |
| Rated Frequency | 50/60 Hz |
| Rated Output Current | 400A |
| Rated Load Voltage | 34V |
| Putput Current Range | 30-400A |
| Output Voltage Range | 12-38V |
| Max. Open Circuit Voltage | 78V |
| Rated Duty Cycle | 60% |
| Insulation Class | H |
| Memory | 30 |
| Weight | 50 kg |
| Dimension (WxDxH) mm | 345 x580x 624 |
| Business Type | Manufacturer, Supplier, Retailer, Trader |

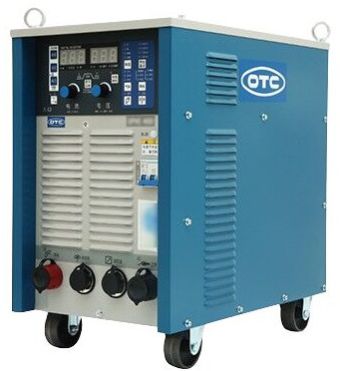

| Model Name | CPVE-500 |
| Phase | 3PH |
| Rated Input Voltage | 415V = 10% |
| Rated Input Power | 23.9 KVA(22.1KW) |
| Rated Frequency | 50/60 Hz |
| Rated Output Current | 500A |
| Rated Load Voltage | 39V |
| Putput Current Range | 30-500A O |
| Output Voltage Range | 12-45V |
| Max. Open Circuit Voltage | 70V |
| Rated Duty Cycle | 100% |
| Insulation Class | H |
| Memory | 30 |
| Weight | 60 kg |
| Dimension (WxDxH) mm | 345 x 633 x 580 |
| Business Type | Manufacturer, Supplier, Retailer, Trader |
| Control Type | One-Knob Synergic Control |
| Features | Built-in Present Voltage Program, Separate Control Mode For Amperage & Voltage, Penetration Control, Instantaneous Arc Start |
| Remote Control | Easy To Read And Precise Current/Voltage Scales |
| Quality Assurance | Keeps The Depth Of Penetration At A Constant Level For Assured Quality Of Welding |
| Arc Start | Instantaneous Arc Start Close To 100% From Low To High Current |
| Additional Features | Hot Start And Wire Slow Down Start Control For Secured Arc Starts |
One-Knob Synergic Control Provides Appropriate Arc Voltage for the Welding Current Selected
\\nInexperience Operators Can Achieve Proper Welding Conditions Without Creating Rework. The Machine Delivers a Built in Present Voltage Program to Accommodate the Amperage (Wire Feed Speed) Separate Control Mode (for Amperage & Voltage) is Also Provided as a Standard Feature.
\\n\\n
Easy to Read and Precise Current/Voltage Scales on Remote Control
\\nIndicates adjusted value due to the effect of the gas mixture and wire diameter.
\\n\\n
Cutting edge "Penetration Control" is one flip of the knob away
\\nThis "Penetration Control" keeps the depth of penetration at a constant level when tip-to-work distance varies for assured quality of welding.
\\n\\n
Instantaneous Arc Start Close to 100% From Low to High Current
\\nMicroprocessor control allows instantaneous arc start even at low current virtually every time. And it features Hot Start and Wire Slow Down Start control. This combination delivers secured arc starts.
